Power Plant / Security Operations, Gallery 1

• The six generators housed in the underground power plant could produce 17.3 megawatts and were powered by 16 cylinder diesel engines.
• Security operations for the MSR complex were housed in one corner of the underground power plant building (both levels). <$
  • Lower level contained the decontamination area, arms room, and operations center (monitor room).
  • Upper level contained the officers' quarters, enlisted dormitory, day room, dining area, etc.
• Power Plant Comments
• Power Plant Videos
  • While not the actual PAR/MSR power plant, these two videos show the Cooper-Bessemer LSV-16 prime mover driving a generator. This is the same engine used in the PAR and MSR power plants.
    • Cooper Bessemer LSV16 4000kw Diesel Generator - Walk Around
      YouTube 1:46, 21 Mar 2018 (New Window)
    • Cooper Bessemer LSV16 4000kw Diesel Generator - Catwalk Walk Around
      YouTube 1:50, 21 Mar 2018 (New Window)
    • Posted by Michael Ophus via Facebook (2)
• Additional photos and information can be found in the PAR power plant page. It uses the same equipment found in the MSR power plant and is still in operation. <$

(opens in a new window)

Power Plant: External Photos

1051 (M)

1050 (M)

5008 (M)   (L)

• 1051, 1050: Air intake stacks (shorter), diesel exhaust stacks (taller).

P025 (M)   (L) <$

P053 (M)   (L) <$

P007 (M)   (L) <$

P106 (M)   (L) <$

P123 (M)   (L) <$

P133 (M)   (L) <$

P135 (M)   (L) <$

S033 (M) <$

S035 (M) <$

• S035: Heat sink. While the site was "buttoned up" during a nuclear attack, water for component cooling was re-circulated through this underground storage cavern where its heat was dumped.

P108 (M)   (L) <$

Power Plant: Internal Photos, Lower Level

7509e (M)   (L) <$

• 7509e: Power plant, lower level detail.

Miscellaneous

1049 (M)

C104 (M)

S049 (M) <$

• 1049: Six prime movers.
  • This may be the power plant at the prototype MSR on Meck Island.
  • The tactical installation in North Dakota had the generating units arranged 3 X 3 on each side of a central corridor.
• C104: One of six Cooper-Bessemer prime movers coming through the PEUT headed for the power plant.

Main corridor

02805 (M) <$

S045 (M) <$

S050 (M) <$

• Three photos: looking toward the end of the main corridor (away from the MSCB).

S046 (M) <$

S047 (M) <$

• S046: View after 180 turn from photo S050 above. Looking toward the beginning of the MSPP level 1 main corridor. Foreground to background:
  • PEUT (Personnel, Equipment, Utility Tunnel) with open ceiling, extends left to exterior entrance.
  • The entrance to the missile field utility tunnel is on the right side of the PEUT.
  • MSCB level 1 corridor.
• S047: Ceiling, MSPP level 1 main corridor.

Prime mover modules

V041 (M)   (L) <$

V042 (M)   (L) <$

V002 (M)   (L) <$

• V041: View to the left into the corridor from inside one of the six generator modules. Another module can be seen across the corridor.
• V042: View to the right into the corridor from inside one of the six generator modules.
• V002: View into one of the six generator modules.

02891 (M) <$

02892 (M) <$

S048 (M) <$

Equipment

I009 (M) <$

I010 (M) <$

I011 (M)   (L) <$

• I009: Precision motor generators.
• I010: Motor control center.
• I011: Motor control switch gear.

Equipment repair

0004 (M)   (L)

0005 (M)   (L)

0007 (M)   (L)

Power Plant: Internal Photos, Upper Level

7363e (M)   (L) <$

• 7363e: Power plant, Upper level detail.

Miscellaneous

V003 (M)   (L) <$

V043 (M)   (L) <$

V044 (M)   (L) <$

• Three photos: upper level main corridor.

Conrol room

B000 (M)

• B000: Control room, 1975.

7509e (M)   (L) <$

7363e (M)   (L) <$

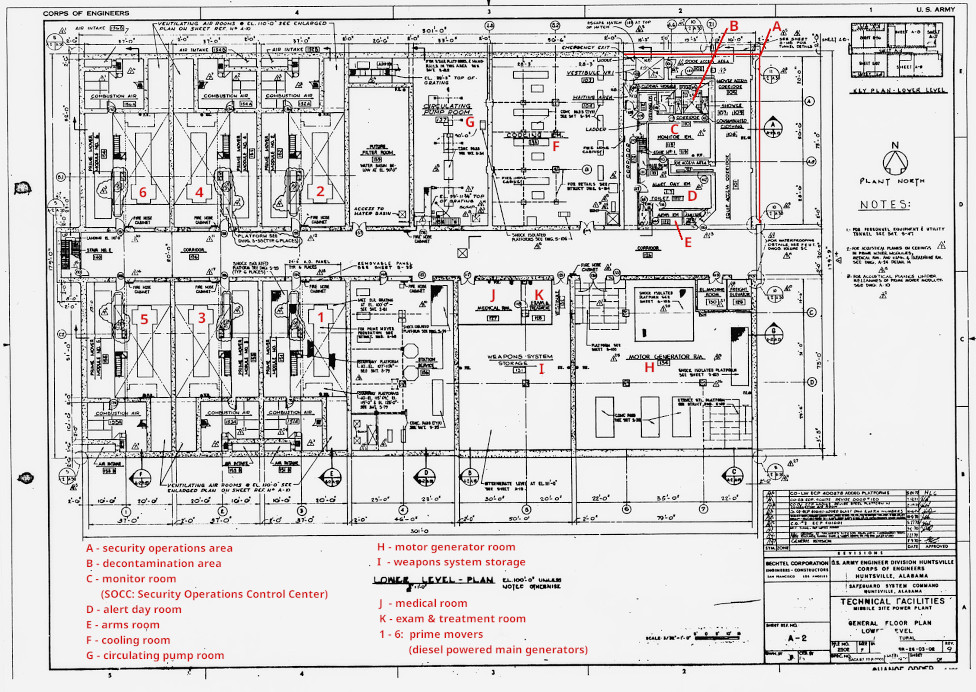

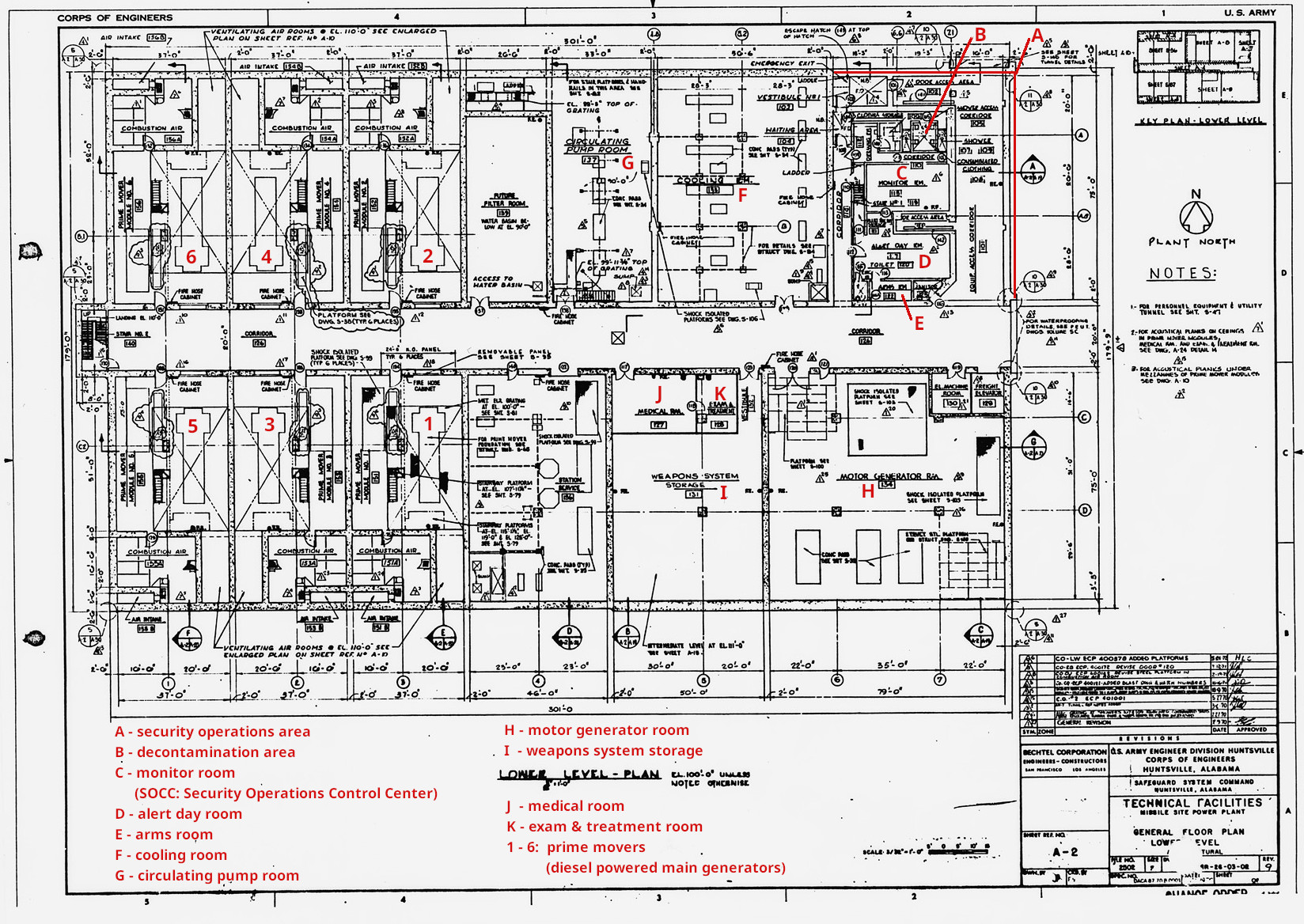

• 7509e: A: Security operations area, lower level.

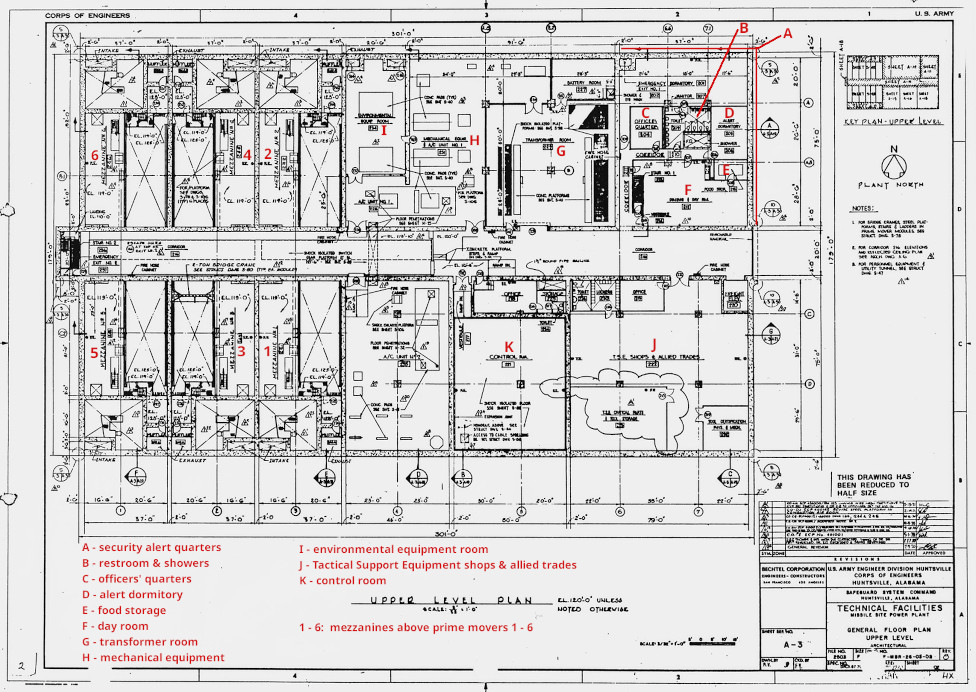

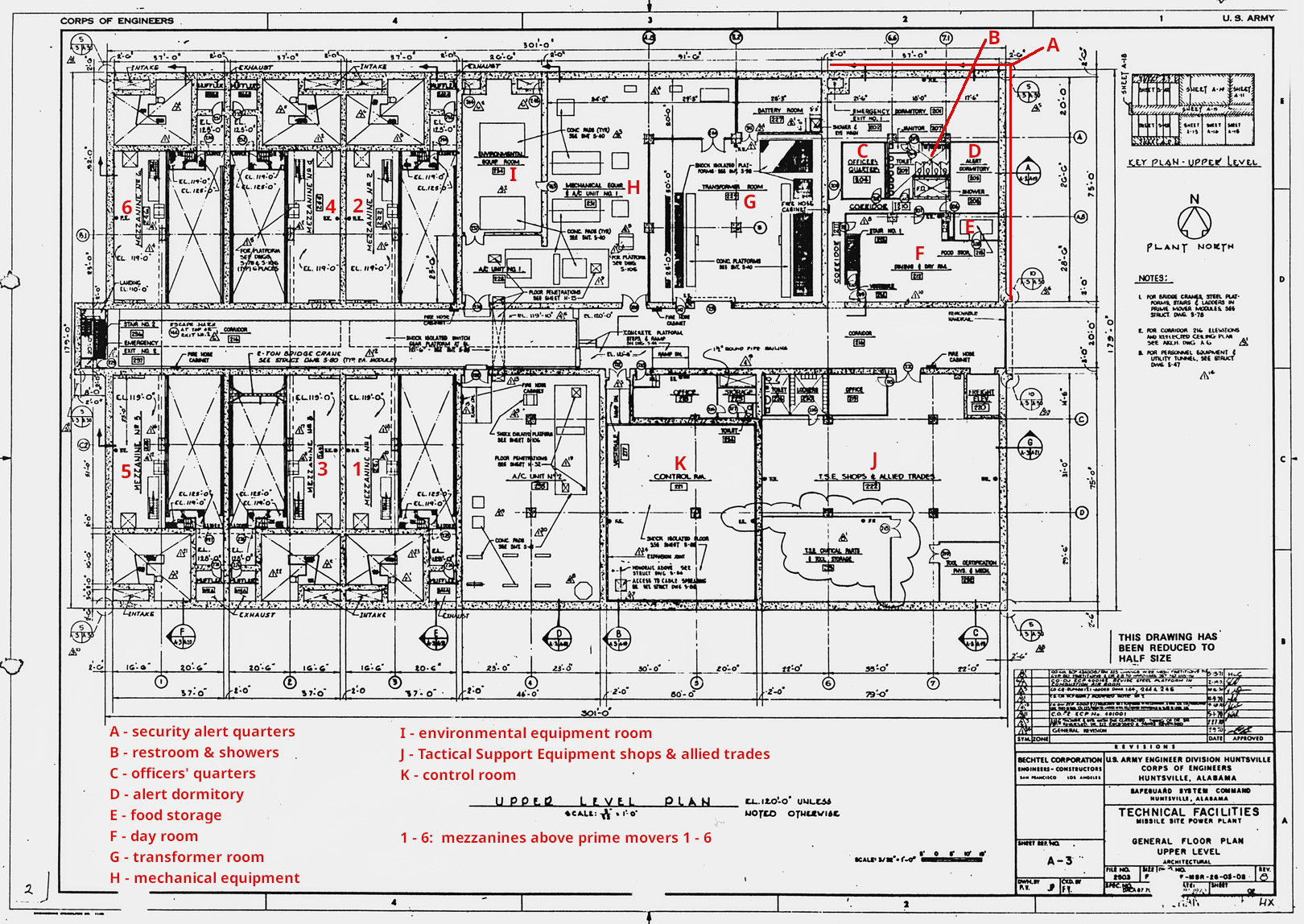

• 7363e: A: Security operations area, upper level.

Miscellaneous

V001 (M)   (L) <$

• V001: View to the left at the inside end of the PEUT tunnel into level 1 of the power plant.
  • Security operations for the entire MSR complex were housed in this corner of the power plant behind the wall in the center of the photo (both levels) and contained:
    • Level 1
      • SOCC (Security operations control center).
      • Decontamination shower and contaminated clothing storage.
      • Arms room.
      • Alert day room.
    • Level 2
      • Officers' quarters.
      • Alert dormitory.
      • Shower and toilet facilities.
      • Food storage.
      • Dining and day room.

Arms room

04023 (M) <$

04024 (M) <$

• Both photos: Arms room, 1975.

SOCC (Security Operations Control Center)

1047 (M)

04017 (M) <$

04022 (M) <$

• 1047: The monitor room provided a central control point for all sensors, alarms, and closed circuit TV monitors located throughout the MSR complex.
  • Alarm status board is partially visible above the closed circuit TV monitors.
• 04017: MP John Thompson (standing) is looking at the alarm status map. If you can identify anyone else in the photo, please the webmaster.
• 04022: Alarm status was indicated on (left) a map of the MSR tactical area and (right) an "exploded" diagram of the MSCB.

04016 (M) <$

04018 (M) <$

04019 (M) <$

• 04018: SOCC console with MP John Thompson in the operator's chair (1975).
• 04019: SOCC CCTV control panel with MP John Thompson making adjustments (1975).

00104 (M)

04020 (M) <$

04021 (M) <$

• 00104: MSR CCTV camera locations. Info from Dale Whitacre.
• 04020: SOCC photo showing MP John Thompson (standing at panel), MP Frank Flynn seated at console, and another unidentified MP (1975).
  • If you can identify the other unknown MP in the photo, please the webmaster.
• 04021: MP's at the SOCC console (1975).
  • MP on the right is Pat Murphy.
  • If you can identify the MP on the left, please the webmaster.
